MATERIAL GUIDE
NEW Waterproofing and Gas Vapour Protection Membranes
VINTEGRA
Waterproofing and gas vapour protection
VINTEGRA® Waterproofing Membranes are a membrane composite comprised of a 500 micron thick, 7 layer engineered film consisting of polyethylene and a EVOH barrier layer with integrated bentonite geotextile waterproofing tanking membrane.
VOLTEX
Available in 4 variations
VOLTEX combines sodium bentonite layered within a durable woven & nonwoven geotextile to provide waterproofing protection for any below-grade concrete construction. It is simple to install, robust & contaminate resistant.
This proprietary membrane is a sodium bentonite compound integrally bonded to a geomembrane liner. This composition combines the active waterproofing benefits of sodium bentonite with the strength and puncture resistance of a passive liner. Swelltite is a true advancement in waterproofing technology. Unlike other membrane systems, its reactive bentonite compound can expand to seal small punctures in the membrane.
ULTRASEAL
Available in 2 variations
ULTRASEAL waterproofing membrane is comprised of a polyethylene liner and an Active Polymer Core (APC) layer integrally bonded to an aggressive pressure sensitive adhesive that locks the membrane to concrete. The Active Polymer Core (APC) is engineered to provide high-performance resistance to groundwater contaminants and is 10 times less permeable and more chemically resistant than traditional hydrophilic waterproofing membranes. ULTRASEAL is durable withstanding inclement weather, construction traffic and can be applied to green concrete. Most importantly, it’s been proven effective in both hydrostatic and non-hydrostatic conditions.
Coreflex sets the industry standard for waterproofing membrane strength, durability and performance. This reinforced thermoplastic membrane is integrally bonded to a proprietary Active Polymer Core (APC) layer combined with fully welded seams providing ultimate waterproofing protection. Its thermoplastic membrane is engineered to resist high hydrostatic pressure and groundwater contaminants along with an extremely low water vapour transmission that qualifies it as a Class “A” Vapour Retarder per ASTM E1745.
WATERSTOPS &
EXPANSION JOINTS
CETCO offers a diverse portfolio of waterstops and expansion joints to ensure any installation is covered. Our waterstops with expansion capabilities not only provide better seals, but also fill voids and cracks.
Waterstop RX - bentonite/butyl-rubber strip
Waterstop XP - High saline & contamination resistant
Akwastop - Hydrophilic Rubber Concrete Joint
Akwaswell- caulk grade, swelling paste
LDC60
Cold Fluid-Applied Polyurethane Waterproofing
LDC 60 is a single component, moisture cure modified polyurethane waterproofing membrane. LDC 60 cures to form a seamless, elastomeric waterproof membrane that is positively bonded to the substrate. The inherent toughness and elasticity of LDC 60 enables it to bridge small structural or shrinkage cracks which may develop in the substrate. Its tenacious bond to concrete substrates prevents lateral water migration. LDC 60 is typically applied by roller, or squeegee. Its fluid application allows it to be easily installed at difficult areas, such as around multiple pipe penetrations and over irregular substrates.

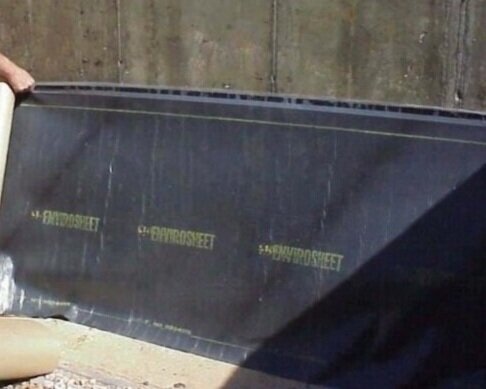

Envirosheet is a composite membrane consisting of specially formulated rubberized asphalt integrally bonded to a cross laminated polyethylene liner. It’s designed to waterproof vertical and horizontal structural concrete, masonry and wood substrates. Installation is fast and easy. Simply position the product into place over a properly prepared and primed substrate. It also easily contours to substrate transitions and can be cut on site to form around penetrations.
AQUADRAIN
Drainage Composites
AQUADRAIN™ drainage composite is a prefabricated sheet drain consisting of a three-dimensional polypropylene formed dimple core covered with a nonwoven polypropylene filter fabric on one side. The formed dimple core provides compressive strength and collects water for flow to drainage discharge pipes.
Click on the title to be redirected to the Aquadrain series.
CETGUARD is a high-performance cold fluid applied PMMA membrane. Durable and reinforced, the CETGUARD membrane is UV and chemical resistant.
Click on the title to be redirected to the Cetguard high-performance product line.
Remedial Grouts
Whether you need a simple crack repair or a long-term waterproofing solution for penetrations or structural joints in concrete walls, floors or ceilings, CETCO offers a range of remedial grouts to fit your needs. Proven effective in hundreds of projects, these remedial waterproofing products are the choice of concrete professionals worldwide.
CETCO is your single-source supplier providing you with a seamless integration of products and accessories.
